Product Name£ºSplit Air Conditioner
Item Number£ºNS-SAC01
Description£ºSplit Air ConditionerIt can make 9000BTU 12000BTU 18000BTU 24000BTU 30000BTU
Product Detail

Split Wall Type 208-240V/50-60HZ - R22 with 3 meter copper pipe
Model number:NS-SAC01

Product details
Cooling/heating Cooling/heating Capacity     9000BTU
Cooling/heating current input                        4.2/3.9A
EER/COP   BTU/w                                        9.47/1.4
Noise Level Indoor(Hi/med/Lo)/Outdoor     £¨39/31/29)/49dB(A)
Indoor Indoor Air circulation                         470(m3/h)
Dimension(L*D*H)                                       850*330*220mm
Packing(L*D*H)                                           860*340*240mm
Net/Gross weight                                         9/10.5kg
Outdoor Dimension(L*D*H)                        740*310*530mm
Applicable Area                                           14-21m2
Refrigerant piping Liquid side                      6.35£¨1/4"mm/(inch)
Gas side                                                      9.52£¨3/8"£©mm/(inch)
Loading Capacity(40'HQ)                            330sets

It can make 9000BTU 12000BTU 18000BTU 24000BTU 30000BTU

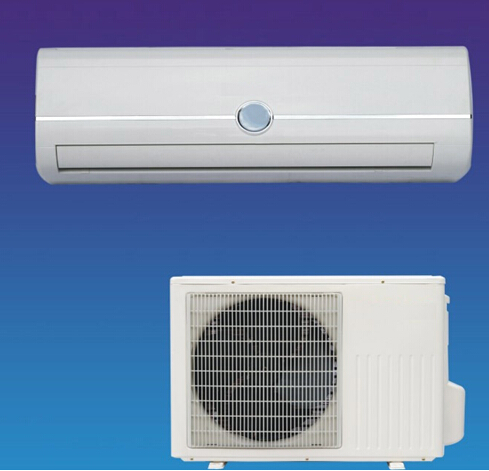

Picture for reference
